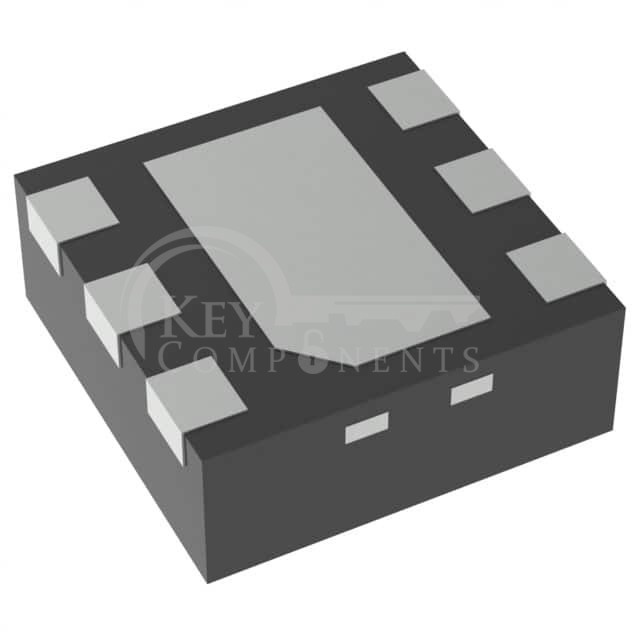

TPS7A2601DRVR

TPS7A2601DRVR

Manufacturer Part TPS7A2601DRVR
Manufacturer Texas Instruments
Description IC REG LIN POS ADJ 500MA 6WSON
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):18V
Voltage - Output (Min/Fixed):1.24V
Voltage - Output (Max):17.4V
Voltage Dropout (Max):0.55V @ 500mA
Current - Output:500mA
Current - Quiescent (Iq):5 µA
Current - Supply (Max):400 µA
PSRR:80dB ~ 52dB (10Hz ~ 1kHz)
Control Features:Enable, Power Good
Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-WDFN Exposed Pad
Supplier Device Package:6-WSON (2x2)
